Line Audio products:

• Overview:

  Excellent quality and value Microphones and Pre-amplifiers offering a very linear response, hand built in Sweden.

• Warranty:

  Each unit is covered by a two years warranty. Abuse will void the warranty otherwise we will replace or repair the unit as soon as possible.

• Price & payment:

  Bank wire preffered. Paypal payments are accepted, please use the online Paypal cart on this page for Paypal payments. Note: Please always give your VAT N° if you have one as well as your phone N°.

• Availability:

  We do our best to keep these products in stock at all times:


  • CM3
  • CMEH
  • SM3i
  • SM6i
  • 2MP
  The other mics and preamps might have to be ordered so please check with us.

• Delivery/Shipping:

  We trust UPS as well as Taxipost. Feel free to ask for a quote. Please always provide a phone number when ordering, as required by Taxipost and UPS for delivery. Customers are also welcome to pick up the goods at our office.

Studio Condenser Microphones and Preamps:

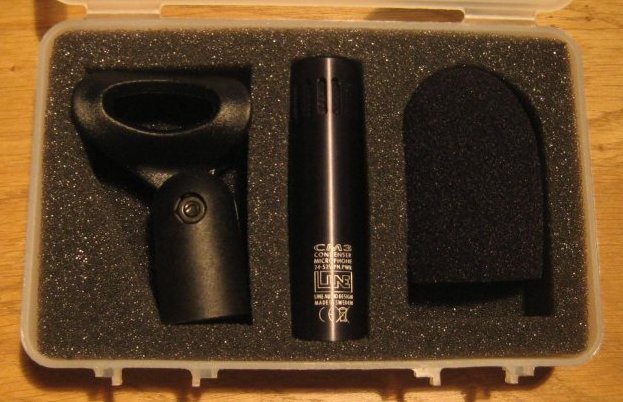

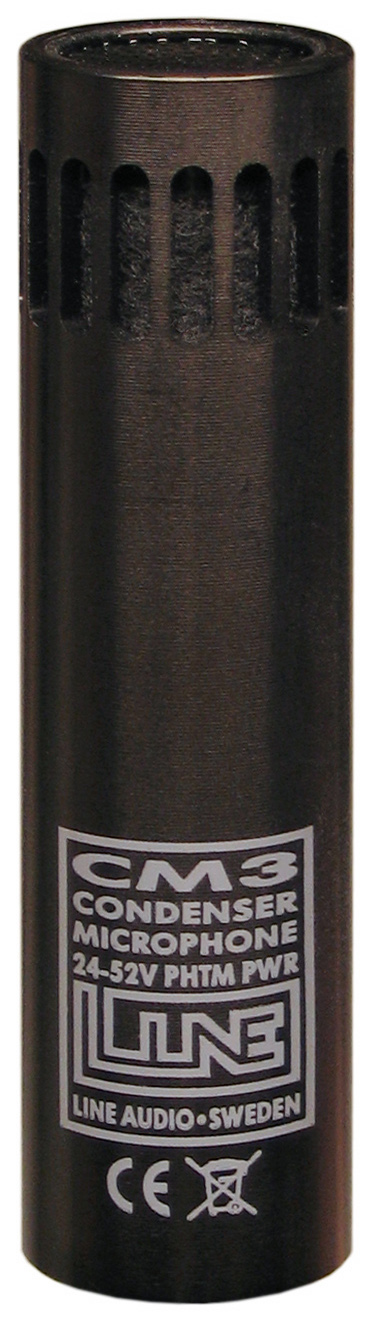

• CM3:

  Small size sub-cardioid condenser microphone.

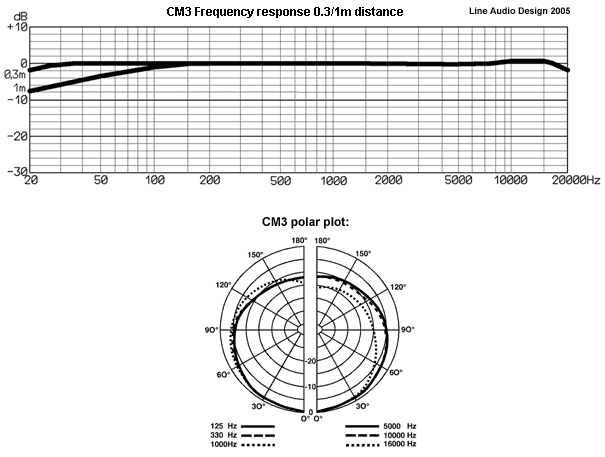

  This little microphone has a natural, detailed and balanced response. Perfect for natural reproduction of acoustical instruments such as members of the bowed and plucked string-families, grand piano, brass, percussion, overhead choir and voice -with a minimum of colouration. The response is smooth and flat even at an angle. The CM3 is tough enough to handle drums with full depth and punch, drum overhead clearly and crisp without strain. It even handles amplified instruments. It's suitable for professional studio and PA use, with a pricetag at the hobbyist level. It's very small size (about the same as a normal XLR plug) makes it easy to place, without being in the way. Its size and black colour makes it close to invisible on stage. During manufacturing each capsule is measured, selected and trimmed to close tolerances. Out of range capsules are rejected. This in combination with the internal circuitry, results in a response with a unique flatness. These are quality microphones made for demanding situations. Windshield and holder/clip included (as shown). Hand-Made in Sweden. Specifications: TYPE: prepolarised cardioid condenser microphone. Frequency response: 20-20000Hz (100-16000Hz+-1dB on axis!) Phantom power: 12 - 48V current consumption: 3.5 mA Impedance: <100 Ohm Sensitivity: 6mV/PA -44dB S/N ratio (DIN/CCIR): 78dB(A)/68dB Noise level: 16dB(A) Max SPL: 135dB @0.5% THD (130dB@24V, 120dB @ 12V) Size: 77mm x 20mm .

  Price:


  • Single CM3 mic: 93,63€ Ex VAT

  • Single CM3 mic + CMEH shockmount (below): 107,44€ Ex VAT

  OUT OF STOCK UNTIL THIRD WEEK OF FEBRUARY 2012
  To purchase, Email us for bank transfer payment or use the Paypal cart.
  Shipping costs: Please check the right hand column and choose.

  Configurations:

  Single CM3 €93,63 EUR Single CM3 + CMEH €107,44 EUR

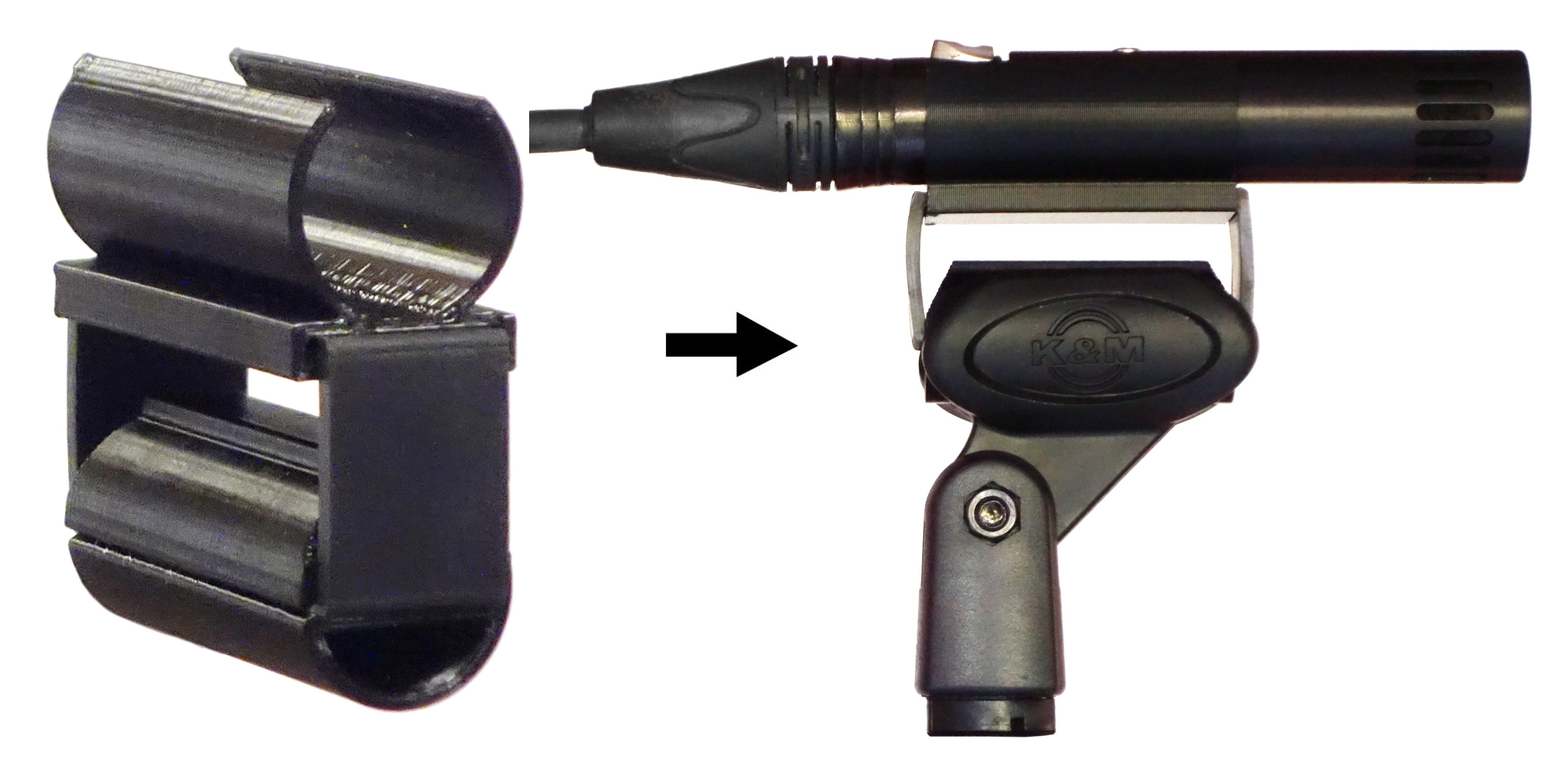

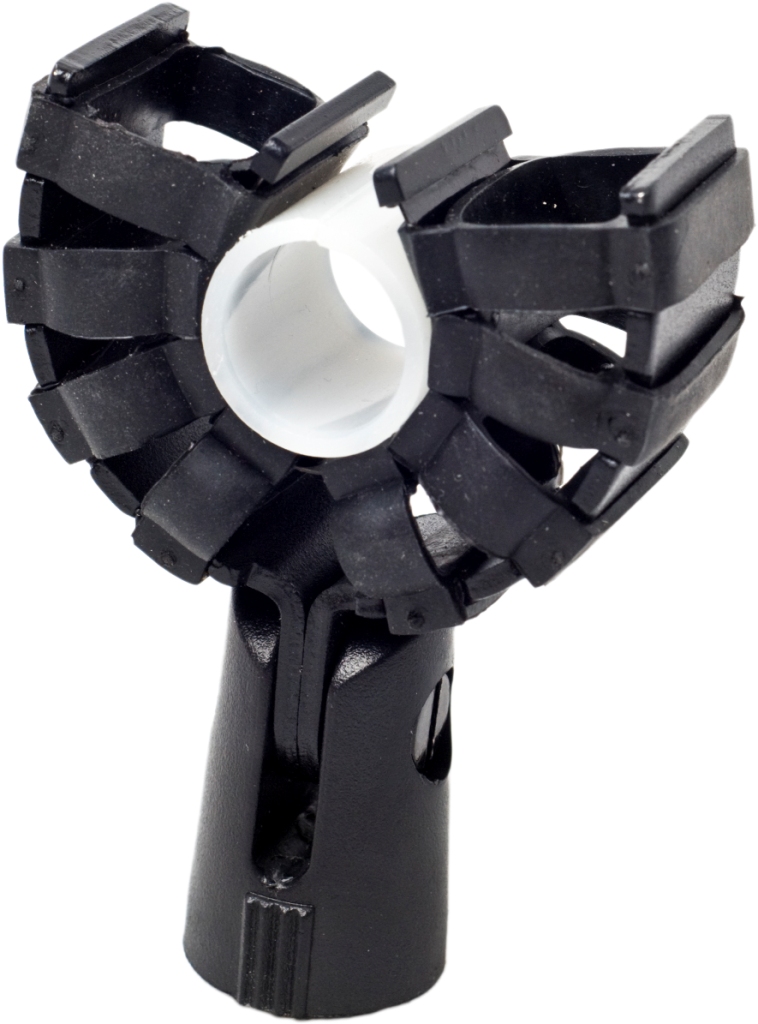

• CMEH:

  Shockmount holder/clamp.


  Fitted with combo EU/US size metal thread adapter - will fit mic stands worldwide. For CM3 and other pencil mics of approx. 20mm diameter. Removable plastic adapter to fit CM3 body - remove for Neumann KM Series and other mics. Durable metal and high grade plastic construction.

  Price: 18,29€ Ex VAT.
  IN STOCK
  To purchase, Email us for bank transfer payment or use the Paypal cart.
  Shipping costs: Please check the right hand column and choose.

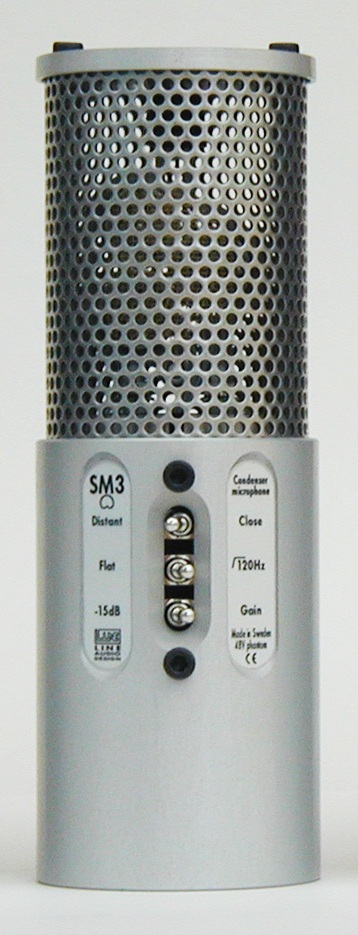

• SM3i:

  Cardioid condenser microphone (single cartridge / 3membranes).

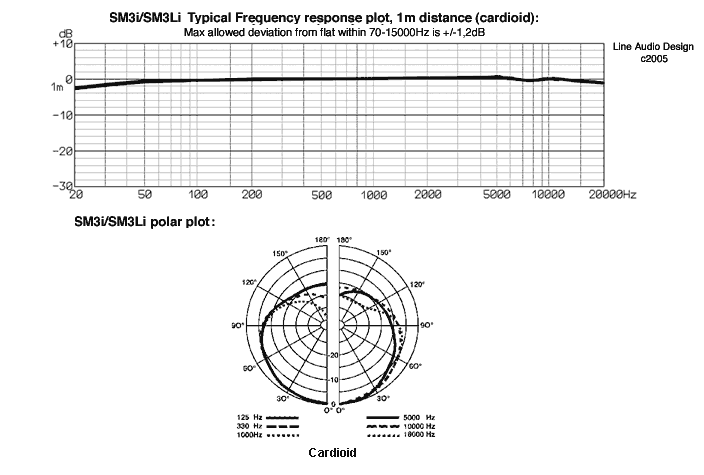

  Large membrane area using triple small membranes. The triple membrane cartridge combines the low noise of a large membrane with the fast and detailed response of smaller membranes, which besides their fine tonal quality are tougher and not as easilly destroyed. Well balanced, uncoloured response, covering the full audio spectrum. Solid deep bass, natural midrange and silksoft top ensures that all qualities of the source and ambience are captured with minimal distortion. Switchable gentle low cut shelving filter to compensate for the proximity effect of the Cardioid pattern. Switchable 120Hz 12dB/oct Highpass filter. Switchable gain/PAD: 0 or -18dB. Elastic holder and protective case included. Hand-Made in Sweden. Specifications: TYPE: Prepolarized condenser microphone. PHANTOM POWER: 40-52V. FREQ. RESPONSE: 20 - 20000 Hz (70-15000Hz +-1.2dB on axis!). IMPEDANCE: < 100 Ohm 1KHz. SENSITIVITY: 10mV/PA (SM3L/ST6L 7mV/PA -44dB. S/N RATIO: (DIN/CCIR) 83dB(A)/73dB. NOISE LEVEL: 11dB(A). MAX SPL: 130dB. CURRENT CONSUMPTION: 3.5 mA. CONNECTOR: 3 PIN XLR (pin1 GND, pin 2+, pin3 -). SIZE: 140mm x 47mm. WEIGHT: 320g (microphone only).

  Price: 289,25€ Ex VAT.
  OUT OF STOCK UNTIL MARCH 18th
  To purchase, Email us for bank transfer payment or use the Paypal cart.
  Shipping costs: Please check the right hand column and choose.

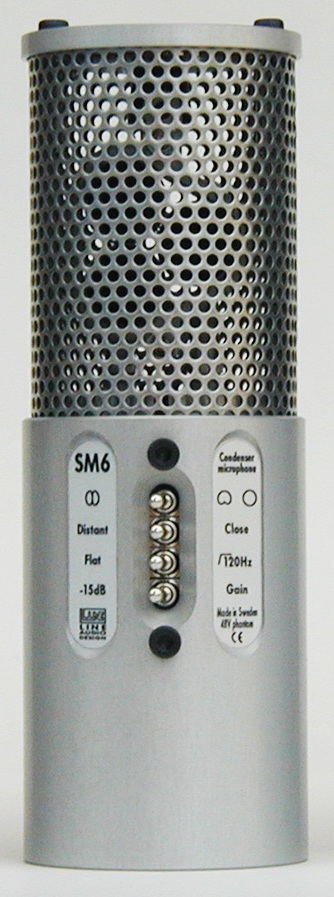

• SM6i:

  Multipattern condenser microphone (Omni, Cardioi, Fig-8. Double cartridges / 6 membranes).

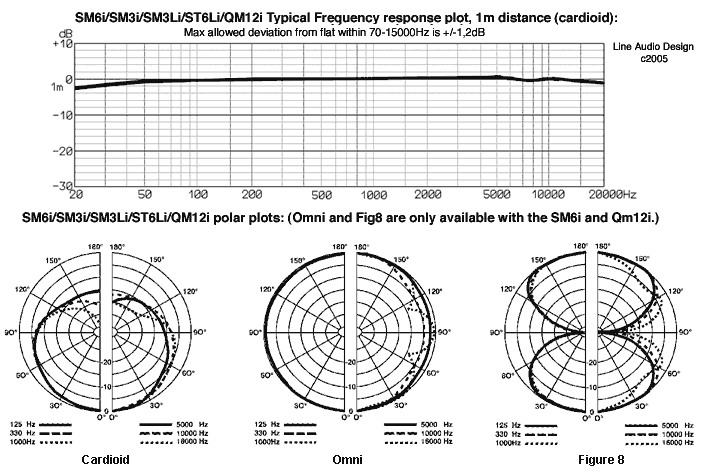

  Double sets of our triple membrane cartridges (totally 6 membranes) are used to achieve switchable omni, cardioid and figure 8 patterns. The triple membrane cartridge combines the low noise of a large membrane with the fast and detailed response of smaller membranes, which besides their fine tonal quality are tougher and not as easilly destroyed. Well balanced, uncoloured response, covering the full audio spectrum. Solid deep bass, natural midrange and silksoft top ensures that all qualities of the source and ambience are captured with minimal distortion. Switchable gentle low cut shelving filter to compensate for the proximity effect of the Cardioid and Fig-8 patterns. Switchable 120Hz 12dB/oct Highpass filter. Switchable gain/PAD: 0 or -18dB. Elastic holder and protective case included. Hand-Made in Sweden. Specifications: TYPE: Prepolarized condenser microphone. PHANTOM POWER: 40-52V. FREQ. RESPONSE: 20 - 20000 Hz (70-15000Hz +-1.2dB on axis!). IMPEDANCE: < 100 Ohm 1KHz. SENSITIVITY: 10mV/PA (SM3L/ST6L 7mV/PA -44dB. S/N RATIO: (DIN/CCIR) 83dB(A)/73dB. NOISE LEVEL: 11dB(A). MAX SPL: 130dB. CURRENT CONSUMPTION: 3.5 mA. CONNECTOR: 3 PIN XLR (pin1 GND, pin 2+, pin3 -). SIZE: 140mm x 47mm. WEIGHT: 320g (microphone only).

  Price: 395,00€ Ex VAT.
  OUT OF STOCK UNTIL FURTHER NOTICE
  To purchase, Email us for bank transfer payment or use the Paypal cart.
  Shipping costs: Please check the right hand column and choose.

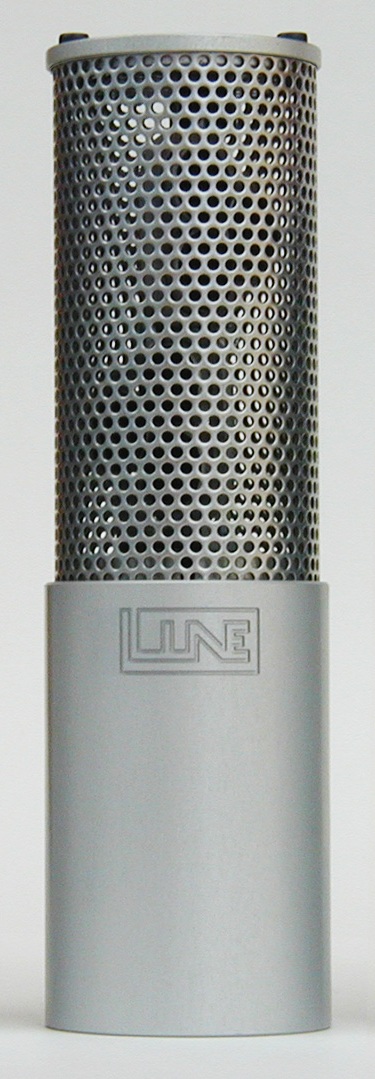

• QM12i:

  QM12i QUAD / Multipattern multichannel microphone (Quadruple cartridges / 12 membranes).


  This microphone is actually four complete/independent SM3s in one body with each membrane angled at 90 degrees. Typically ordered with 5 meters of cable (with QM12 multiconnector to 4x XLR wip), inquire for other lengths. Well balanced, uncoloured response, covering the full audio spectrum. Solid deep bass, natural midrange and silksoft top ensures that all qualities of the source and ambience are captured with minimal distortion. QM12i picks up true QUADRAPHONIC/SURROUND. With external matrixing, the following stereo and mono patterns: Stereo: BLUMLEIN (crossed figure eight), M/S, Omni X/Y. Mono: Any pattern between OMNI-CARDIOID-SUPER CARDIOD-FIGURE EIGHT. Recordings can be made Quadraphonically with the stereomatrix manipulated at a later stage, finding out the best settings not before recording, but afterwards. This reduce the risk of mistakes and enables post production perfection of the stereo image/ambience, not possible with standard techniques. Elastic holder and protective case included. Hand-Made in Sweden. Specifications: TYPE: Prepolarized condenser microphone. PHANTOM POWER: 40-52V. FREQ. RESPONSE: 20 - 20000 Hz (70-15000Hz +-1.2dB on axis!). IMPEDANCE: < 100 Ohm 1KHz. SENSITIVITY: 10mV/PA (SM3L/ST6L 7mV/PA -44dB. S/N RATIO: (DIN/CCIR) 83dB(A)/73dB. NOISE LEVEL: 11dB(A). MAX SPL: 130dB. CURRENT CONSUMPTION: 3.5 mA. CONNECTOR: 3 PIN XLR (pin1 GND, pin 2+, pin3 -). SIZE: 170mm x 47mm. WEIGHT: 320g (microphone only).

  Price:

  • QM12i set (NO CABLE): 613,86€ Ex VAT.

  • 5 meters cable: 99,01€ Ex VAT.

  OUT OF STOCK UNTIL FURTHER NOTICE
  To purchase, Email us.

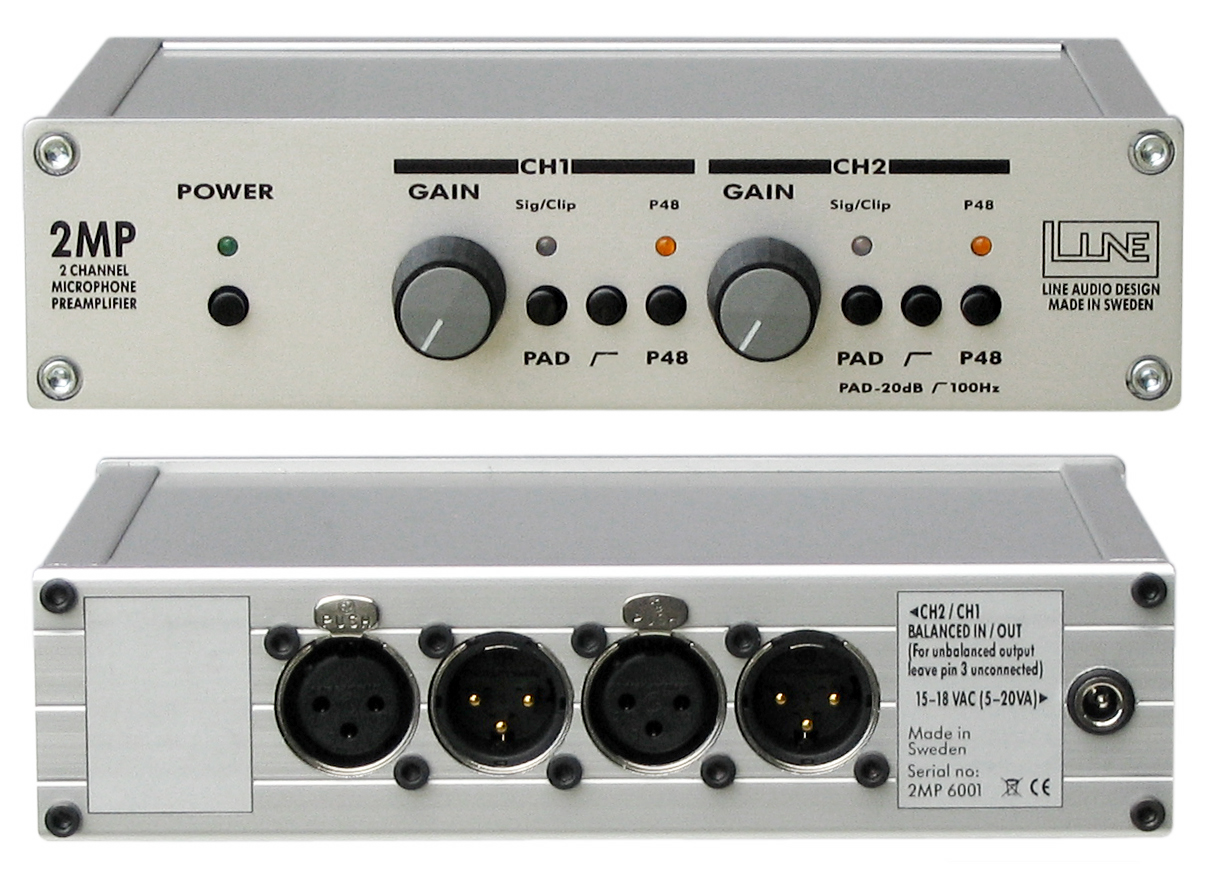

• 2MP:

  2 channel / standalone Microphone Pre-amplifier.


  Based on carefully designed circuitry that ensures uncoloured and detailed audio offering higly transparent audio gain. The design is DC-coupled throughout, except for the matched plastic film input capacitors and is based on a low noise, discrete, class A, matched transistor differential pair input stage, followed by low noise, low distorion O/P-amplifiers. Overall the signal path is short and audibly transparent. The inputs are electronically balanced XLR microphone inputs with 48V phantom power, capable of delivering full phantomcurrent on ALL channels without the voltage "diving" or adding noise and hum. The XLR outputs are electronically balanced (with a slow DC-offset servo). All XLR sockets are goldplated original Neutriks'. To minimize noise and distortion and to ensure good gain-potentiometer performance the first stage has only two fixed gains with the gain-potentiometer is inserted at a later stage. Hand-Made in Sweden.

  Price: 260,46€ Ex VAT.
  IN STOCK
  To purchase, Email us for bank transfer payment or use the Paypal cart.
  Shipping costs: Please check the right hand column and choose.

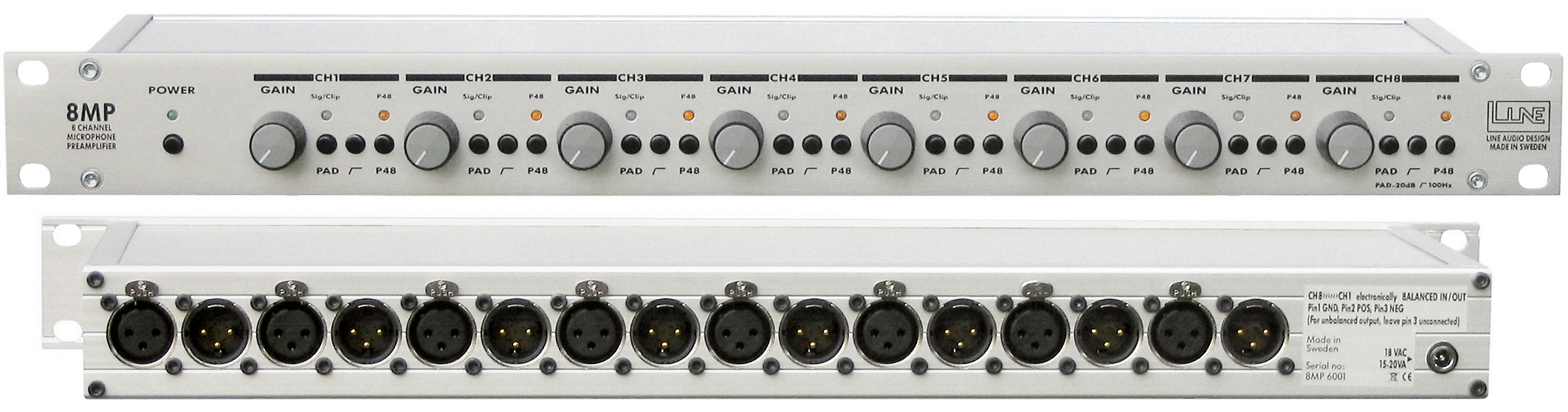

• 8MP:

  8 channel / 1U Rack Mount Microphone Pre-amplifier.


  Based on carefully designed circuitry that ensures uncoloured and detailed audio offering higly transparent audio gain. The design is DC-coupled throughout, except for the matched plastic film input capacitors and is based on a low noise, discrete, class A, matched transistor differential pair input stage, followed by low noise, low distorion O/P-amplifiers. Overall the signal path is short and audibly transparent. The inputs are electronically balanced XLR microphone inputs with 48V phantom power, capable of delivering full phantomcurrent on ALL channels without the voltage "diving" or adding noise and hum. The XLR outputs are electronically balanced (with a slow DC-offset servo). All XLR sockets are goldplated original Neutriks'. To minimize noise and distortion and to ensure good gain-potentiometer performance the first stage has only two fixed gains with the gain-potentiometer is inserted at a later stage. Hand-Made in Sweden.

  Price: 589,27€ Ex VAT.
  IN STOCK
  To purchase, Email us for bank transfer payment or use the Paypal cart.
  Shipping costs: Please check the right hand column and choose.



  SPECIFICATIONS 2MP & 8MP Preamplifiers:

  Power requirement: 15-18VAC 7-20VA (2MP) 15-20VA (8MP), 50-60Hz. External 230VAC transformer included (120VAC on special request)
  Frequency response: 5Hz - 100 KHz +-0.5dB (2Hz - 200KHz -3dB)
  Gain: 60dB with balanced output. (with unbalanced output 54dB). The gain of the input stage has two fixed settings giving max 60dB or 40dB gain.
  Harmonic distortion: 0.002% at -6dB below max level, at full gain of input stage. 0.005% at -3dB below max level, at full gain of input stage
  Highpass filter: 100Hz, 12dB/oct switchable. Other frequency on special request
  Inputs: Electronically balanced
  Input impedance: >10Kohm
  Input level: max 3.2V RMS / 320 mVRMS (-20dBPAD / no PAD)
  Input noise level: -128 dBU/dBm (100ohm termination, 20-20KHz B/W) -133 dBV (input shorted)
  Phantom power: +48V through fed through 2 x 6.8 Kohm resistors
  Phantom current: 10mA per channel, all channels loaded
  Outputs: Electronically balanced.
  Output impedance: 300 ohm (150ohm+150ohm)
  Output level: max 15V RMS
  Output DC offset: max 1mV at 40dB gain, max 10mV at 60dBgain
  XLR Polarity: Pin 1 ground, pin 2 positive, pin 3 negative.
  For unbalanced output: use pin2 for signal and pin1 for signal ground (pin 3 ahould be left unconnected).
  Size 2MP: 173 mm (W), 44 mm (H), 158mm (D).
  Size 8MP: 483 mm (W), 43.7 mm (H), 153mm (D). Depth behind rack rail: 131mm.

  This product is designed and manufactured in Sweden.
  Specifications may be subject to change without previous notice.
